12 – 40.5 kVAIS · GIS · Metal-cladMV Switchgear
Air-insulated switchgear, SF6 gas-insulated ring main units and metal-clad withdrawable switchgear up to 40.5 kV and 4000 A.
IEC 62271-200View details
Products
Product portfolio
Nine product families for power distribution, transmission, generation and protection — each available in configurations tailored to your project.
12 – 40.5 kVAIS · GIS · Metal-clad
25 kVA – 100 MVA+Power · Oil · Dry-typeTransformers
Power transformers up to 245 kV, oil-immersed distribution transformers and cast-resin dry-type transformers.
IEC 60076View details

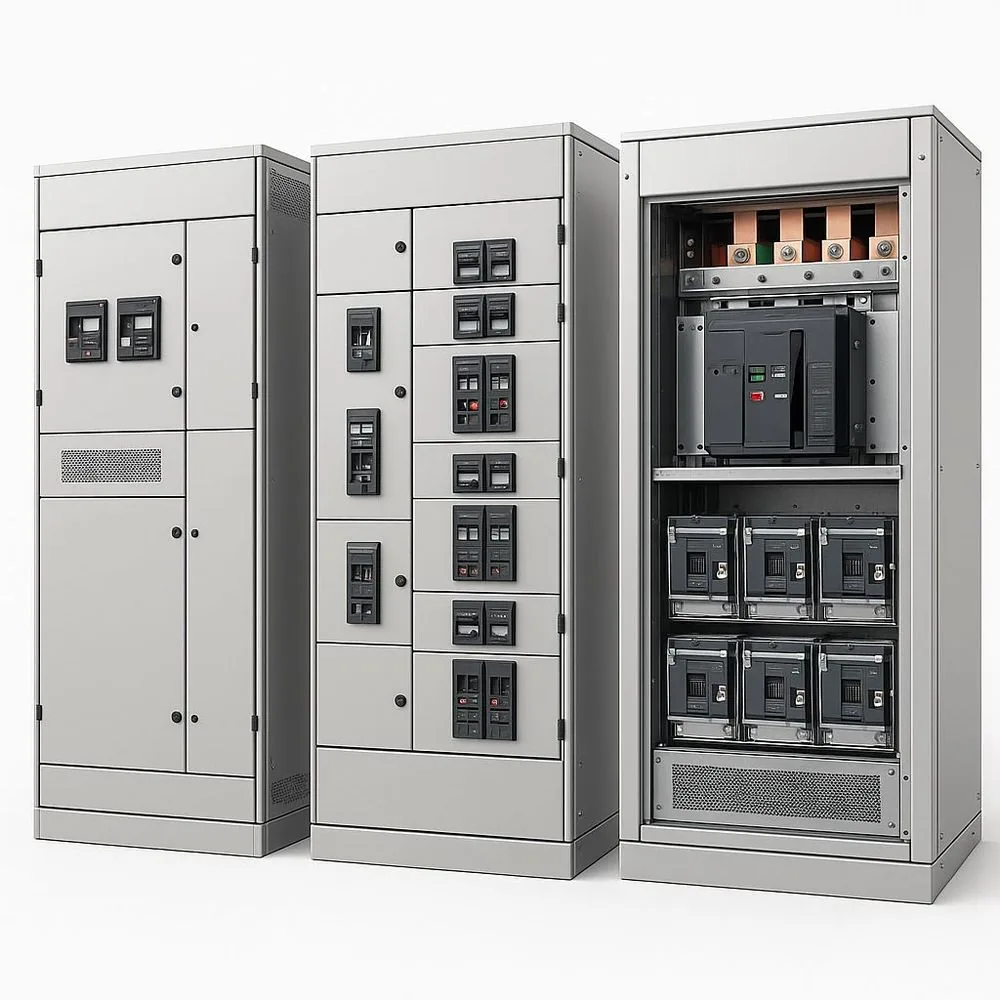

≤ 6300 ADistribution · AutomationLow Voltage Panels
Fixed and withdrawable distribution panels up to 6300 A and 100 kA, plus PLC-based automation and control panels.
IEC 61439-1/2View details
≤ 245 kVCompact · MobileSubstations
Metal-sheet compact substations up to 36 kV and trailer or container-mounted mobile substations from 36 to 245 kV.
IEC 62271-202View details
0.5 – 3550 kVAGensets · MV motorsGenerators & Motors
Diesel and gasoline generators from 0.5 to 3550 kVA, and synchronous or asynchronous medium voltage motors from 1 to 11 kV.
IEC · NEMAView details
72.5 – 550 kVTransmission gridHigh Voltage Equipment
Instrument transformers up to 800 kV, disconnectors from 72.5 to 550 kV and surge arresters for HV and MV networks.
IEC 62271-102View details
0.6/1 kV – HVLV · MV · HVCables
PVC, XLPE and LSZH low voltage cables, XLPE medium voltage cables from 6 to 30 kV and high voltage cables from 36 kV.
IEC 60502 · 60840View details

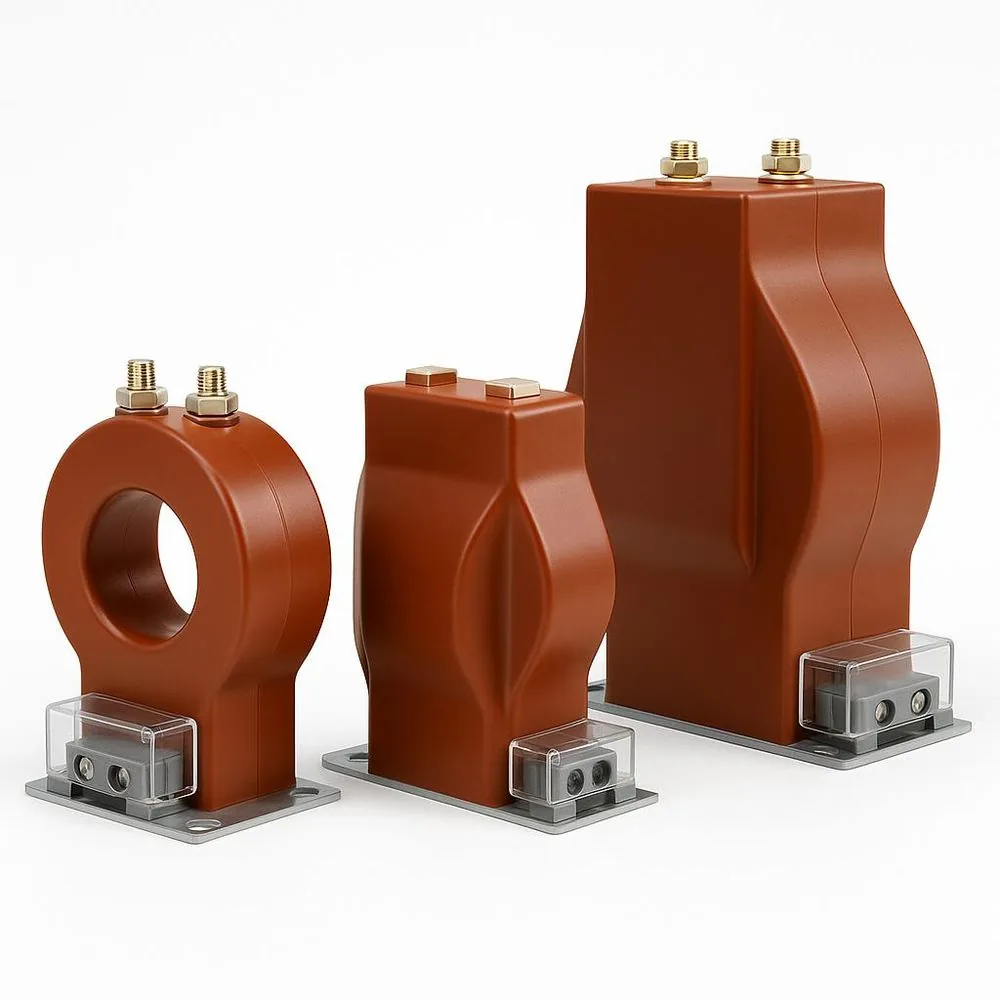

3.6 – 36 kVFuses · CT / VTMV Accessories
Medium voltage fuses from 1 to 200 A and cast-resin or oil-immersed current and voltage transformers for metering and protection.
IEC 60282-1 · 61869View details

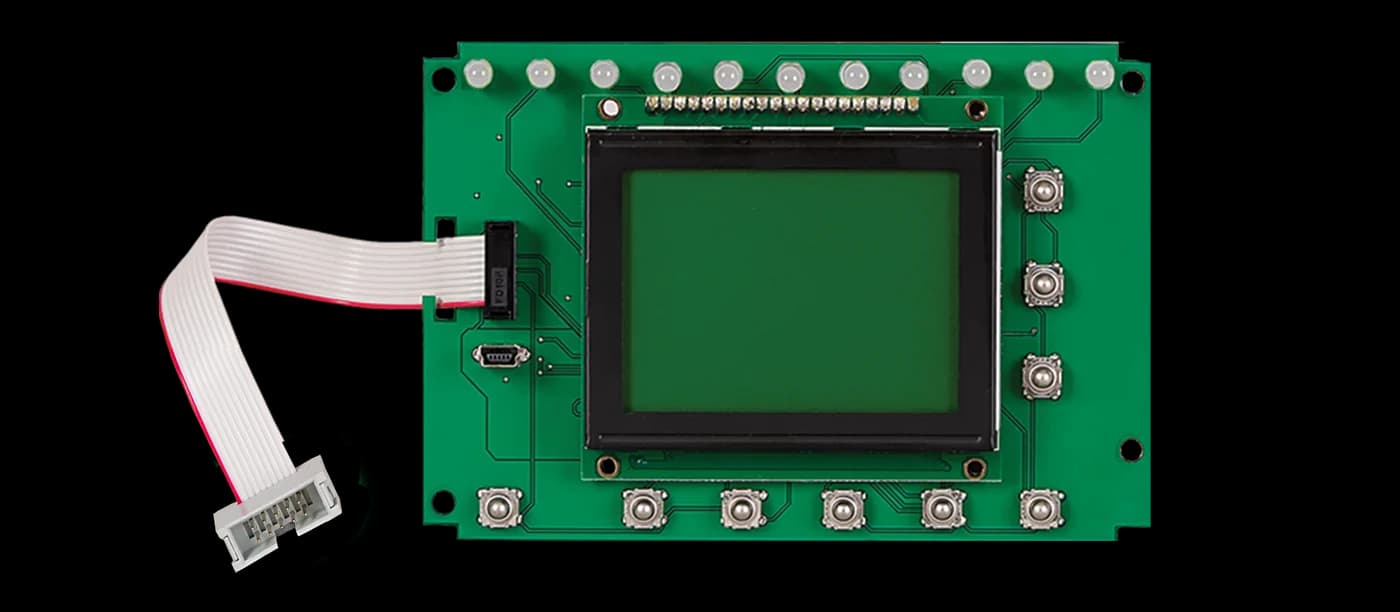

IGS313SRelay interfaceAdvanced UMI Module
IGS313S replacement Advanced UMI module with keypad, LCD and LEDs, compatible with Sepam 20, 40, 60 and 80 series protection relays.
Sepam 20 · 40 · 60 · 80View details
Technical reference
Technical specifications by voltage level
Key ratings of our low, medium and high voltage product ranges, taken from our product data sheets.
Low voltage panels and cables — technical specifications
| Parameter | LV distribution panels | Automation & control panels | LV power cables |
|---|---|---|---|
| Construction | Fixed and withdrawable types | Wall-mounted or free-standing | PVC, XLPE or LSZH insulation · Cu or Al conductors |
| Key ratings | Up to 6300 A · 100 kA / 1 s | PLC, HMI and SCADA integration | Up to 0.6/1 kV |
| Protection degree | IP30 – IP65 | IP30 – IP55 | Armoured or unarmoured |
| Communication | Modbus, Profibus | Modbus, TCP/IP, Profibus | — |
| Standards | IEC 61439-1 · IEC 61439-2 | IEC 61439 · EN 60204 | IEC 60502-1 · IEC 60228 |
Medium voltage switchgear — technical specifications
| Parameter | Air-insulated (AIS) | SF6 gas-insulated RMU | Metal-clad withdrawable |
|---|---|---|---|
| Rated voltage | 12 / 24 / 36 / 40.5 kV | 12 / 24 / 36 kV | 12 – 40.5 kV |
| Rated current | 630 – 4000 A | 630 A (breaker) · 125 A (fused switch) | 630 – 4000 A |
| Short-circuit withstand | 20 – 40 kA / 1–3 s | 20 – 25 kA / 1 s | — |
| Internal arc classification | IAC AFLR up to 40 kA / 1 s | IAC A-FLR up to 20 kA / 1 s | IAC AFLR 31.5 – 40 kA / 1 s |
| Service continuity | LSC2B | LSC2A | LSC2B |
| Insulation | Air — SF6-free | Sealed SF6 tank (IP67) | Air — vacuum or SF6 breaker |
| Standards | IEC 62271-200 | IEC 62271-200 · IEC 62271-105 | IEC 62271-200 |
High voltage equipment — technical specifications
| Parameter | Power transformers | HV disconnectors | Surge arresters | Instrument transformers |
|---|---|---|---|---|
| Voltage range | 36 – 245 kV (primary) | 72.5 – 550 kV | AC and DC up to 1100 kV | Up to 800 kV |
| Key ratings | 2.5 – 100 MVA+ · 50/60 Hz | Type-tested in accredited laboratories | Atmospheric and switching overvoltage protection | Current, voltage and combined types |
| Insulation / cooling | Oil — ONAN / ONAF / OFAF / ODAF | Air-insulated | — | Oil-paper or gas insulated |
| Standards | IEC 60076 | IEC 62271-102 · IEC 62271-1 | IEC 60099-4 · ANSI/IEEE C62.11 | — |
Have a project or technical specification?
Share your requirements — voltage level, ratings, standards and quantities — and our team will propose the most suitable solution.
